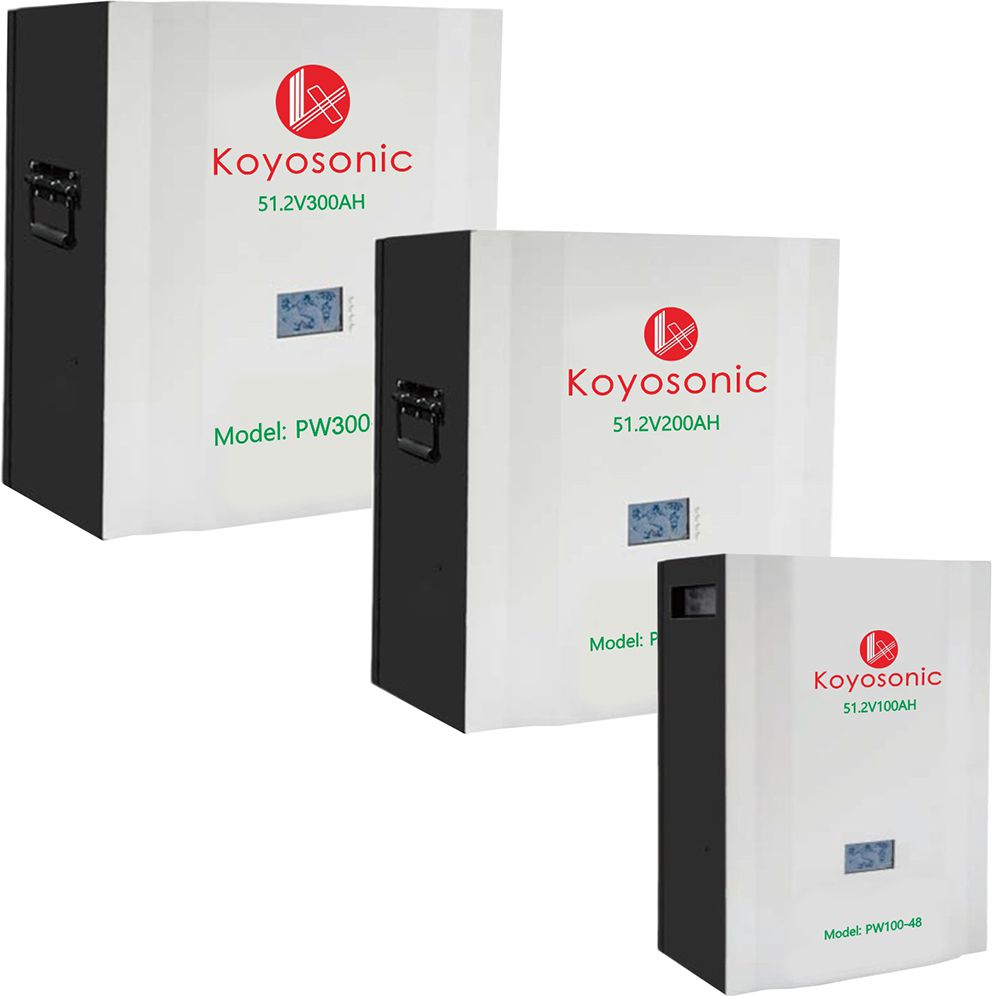

PW series of Power-Wall Batteries

Koyosonic PowerWall is a fully-integrated AC battery system for residential or light commercial application. Its rechargeable LiFePO4 battery pack provides energy storage for solar self-consumption, time-based control, and backup. Powerwall’s electrical interface provides a simple connection to any home or building. Its revolutionary compact design achieves market-leading energy density and is easy to install, enabling owners to quickly realize the benefits of reliable, clean power.

Request Now
Applications
Massive Power Systems. Lead Acid Replacement. Intense Heat And Cold. Emergency Power. Off-grid Power. Solar Systems. Mobile Power. Data Servers. Robotics.
Characteristics
LED Display. Compact Modular Design. High Temp Operating Range. Best Power Density/Pack Size.  Best Aluminum Mosfet Design.  3000 A Short Circuit Protection. High Cold-Cranking Amps (400A). BMS (Battery Management System).Over Voltage, Under Voltage, Over-Current (Thermal Management System), Breaker (300A).
General Specifications
Model Volt
(V)		 Capacity
(Ah )		 BMS
(A )		 Dimension (mm) Approx.
Weight (Kg)		 Terminal
Ports
L W H T.H.
PW100-48 51.2 100 100 430 160 650 650 51.5 RS485/232/CAN
PW100-48B 51.2 100 100 398 160 650 650 46 RS485/232/CAN
PW200-48 51.2 200 100 535 160 900 900 94.5 RS485/232/CAN
PW200-48B 51.2 200 100 234 600 600 600 90 RS485/232/CAN
PW300-48 51.2 300 200 491 262 760 760 113 RS485/232/CAN
