Overview

CB Series of Lead-Carbon Batteries

CB series of lead carbon batteries with addition of carbon increases the pore size of the negative plates, allowing the acid to pass through and be dispersed in the lead paste. The positive effects of this can improve charge acceptance under high current conditions and enhancement of the PSoC performance of the battery. And so our CB series of lead carbon batteies are much better in partial state-of -charge performance , more cycles, and higher efficiency Replacing the active material of the negative plate by a lead carbon composite potentially reduces sulfation and improves charge acceptance of the negative plate. The design life of our lead carbon batteries is 20 years.


Request Now
Applications
Home energy storage system. Smart power grid system. Distributed energy storage system. Solar and wind energy storage system. Big UPS. lnvertor system with cycle requirement. Generation and battery hybrid energy storage system.
Characteristics
Combination of the properties of lead-acid batteries and super capacitors. Suitable for high power PSoC charging. High power, fast charging and discharging. Longer life span than traditional VRLA batteries. Ideal for PSoC cycle application in Renewable Energy (RE). Add functional activated carbon and graphene to negative plates to get excellent acceptance in charge performance. Comply with IEC60896,IEC61427 etc. Can perfectly be used with good performance without being full charged.
General Specifications
Model Volt
(V)
Capacity
(Ah )
Dimension (mm) Approx.
Weight (Kg)
Terminal
Type
L W H T.H.
CB200-6 6 200 306 168 220 225 31.0 T5
CB210-6 6 210 260 180 247 252 30.0 T5
CB225-6 6 225 243 187 275 275 32.5 T5
CB230-6 6 230 260 180 265 272 35.0 T5
CB280-6 6 280 295 178 346 350 45.8 T5
CB300-6 6 300 295 178 346 350 47.0 T5
CB350-6 6 350 295 178 404 410 55.0 T5
CB380-6 6 380 295 178 404 410 57.5 T5
CB20-12 12 20 166 175 126 126 8.4 T2
CB30-12 12 30 196 130 155 167 10.2 T3
CB35-12 12 35 198 166 174 174 14.2 T3
CB50-12 12 50 229 138 208 212 17.7 T3
CB60-12 12 60 350 167 178 178 23.0 T3
CB75-12 12 75 260 169 211 215 26.0 T3

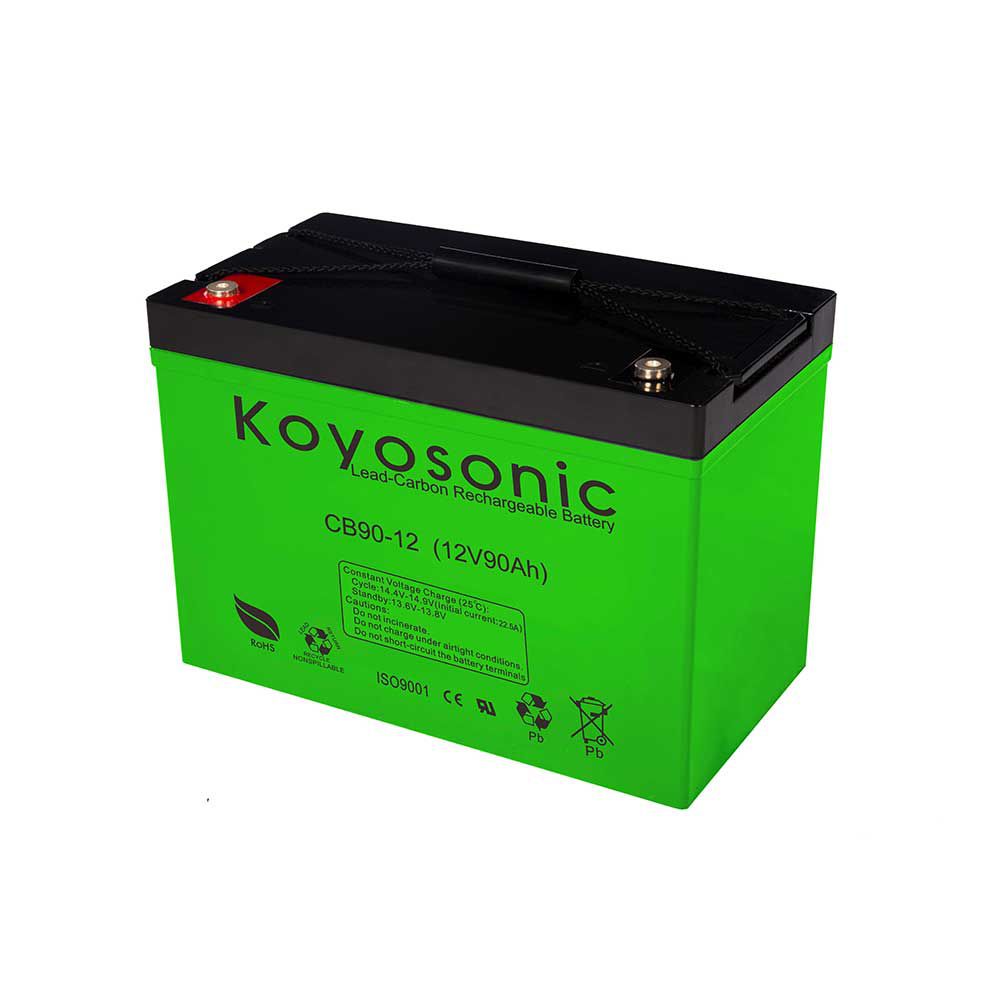

CB90-12 12 90 307 169 211 216 30.0 T3
CB100-12 12 100 331 176 214 220 33.0 T4
CB110-12 12 110 407 173 210 233 39.0 T5
CB120-12 12 120 341 173 283 288 40.5 T5
CB135-12 12 135 484 171 241 241 46.0 T5
CB180-12 12 180 532 206 216 222 58.5 T5
CB200-12 12 200 522 240 219 225 65.0 T5
CB220-12 12 220 520 269 203 209 71.0 T5
CB240-12 12 240 520 268 220 226 78.0 T5
CB100-2 2 100 171 72 205 230 6.0 T5
CB150-2 2 150 171 102 206 230 8.2 T5
CB200-2 2 200 170 106 330 367 13.2 T5
CB300-2 2 300 171 151 330 365 19.0 T5
CB400-2 2 400 211 176 329 367 26.1 T5
CB500-2 2 500 241 172 330 367 31.0 T5
CB600-2 2 600 301 175 331 366 38.0 T5
CB800-2 2 800 410 176 330 365 52.0 T5
CB1000-2 2 1000 475 175 328 365 62.0 T5
CB1200-2 2 1200 472 172 338 355 68.5 T5
CB1500-2 2 1500 401 351 342 378 97.0 T5
CB2000-2 2 2000 491 351 343 383 130.0 T5
CB2500-2 2 2500 712 353 341 382 180.0 T5
CB3000-2 2 3000 712 353 341 382 190.0 T5
