Overview

NP Series of VRLA-AGM Batteries

NP Seires of batteries are for general application, including  Micro-sized batteries with capacity from 0.5Ah to 20AH, Medium-sized batteries with capacity from 24AH to 270AH, and Macro-sized batteries with capacity from 50Ah to 3000Ah. Our design life for Micro-sized batteries is 8 years, 12 years for Medium-sized batteries, and 15 years for Macro-sized batteries. Recently, electronic products are showing remarkable developments. Various communications systems (i.e. VAN, LANand INS) are quickly advancing to connect portable equipment, OA equipment, and FA equipment. A power generation system with solar cells utilizing solar energy is also being brought into service.The VRLA battery is the most suitable lead-acid battery for main and emergency power supply as well as being an energy storage means.

Request Now
Applications
Micro-size batteries are mainly used in security and alarm system, UPS, emergency lightings, etc. Medium-sized batteries are mainly used in big UPS, telecommunication system, solar and win energy system, etc. Macro-sized batteries are mainly used in telecommunication system, portable power station and photovoltaic system, etc.
Characteristics
Valve-Regulated Lead Acid battery (VRLA-AGM) is an advanced, economic and rechargeable battery. It has several properties differing from other types of batteries such as Sealed maintenance-free, High power-to-weight ratio, No memory effect, Low self-discharge, Long service Life, High discharge rate and Wide operating temperature.
General Specifications
Model Volt
(V)
Capacity
(Ah )
Dimension (mm) Approx.
Weight (Kg)
Terminal
Type
L W H T.H.
NP4-4 4 4 47 47 101 107 0.5 F1 / F2
NP1.3-6 6 1.3 97 24 52 58 0.31 F1
NP3.3-6 6 3.3 134 34 60 66 0.59 F1 / F2
NP3.5-6 6 3.5 70 47 101 107 0.67 F1 / F2
NP4-6 6 4 70 47 101 107 0.69 F1 / F2
MP4-6C 6 4 70 47 101 107 0.69 CUT
NP4.5-6 6 4.5 70 47 101 107 0.75 F1 /F2
NP4.5-6C 6 4.5 70 47 101 107 0.75 CUT
NP5-6 6 5 70 47 101 107 0.8 F1 / F2
NP7-6 6 7 151 34 95 101 1.11 F1 / F2
NP7.5-6 6 7.5 151 34 95 101 1.16 F1 / F2
NP8.5-6 6 8.5 99 57 118 118 1.34 F1 / F2
NP10-6 6 10 151 50 94 100 1.63 F1 /F2
NP12-6 6 12 151 50 94 100 1.75 F1 / F2
NP0.8-12 12 0.8 96 25 62 62 0.35 JST /AMP
NP1.3-12 12 1.3 97 43 52 58 0.58 F1
NP2-12 12 2 178 35 61 67 0.82 F1 / F2
NP3.3-12 12 3.3 134 67 61 67 1.35 F1 / F2
NP4-12 12 4 90 70 101 107 1.38 F1 / F2
NP4.5-12 12 4.5 90 70 101 107 1.48 F1 / F2
NP5-12 12 5 90 70 101 107 1.6 F1 / F2
NP5.5-12 12 5.5 151 65 94 100 1.95 F1 / F2
NP6.5-12 12 6.5 151 65 94 100 2.05 F1 / F2
NP7-12 12 7 151 65 94 100 2.15 F1 / F2
NP7.5-12 12 7.5 151 65 94 100 2.22 F1 / F2
MP8.5-12 12 8.5 151 65 94 100 2.4 F1 / F2
NP10-12 12 10 152 99 96 102 3.2 F1 / F2
NP12-12 12 12 152 99 96 102 3.4 F1 / F2
NP15-12 12 15 152 99 96 102 3.8 F1 / F2
NP18-12 12 18 181 77 167 167 5.3 L1 / T1
NP20-12 12 20 181 77 167 167 6 L1 / T1
NP24-12 12 24 165 126 174 179 7.7 T3 / L6
NP26-12 12 26 166 175 126 126 8.4 T2 / L2
NP33-12 12 33 196 130 155 167 10 T3 / L4 / L7
NP38-12 12 38 197 166 174 179 12.3 T3 / L6
NP45-12 12 45 198 166 174 174 12.9 T3 / L7 /L3
NP50-12 12 50 229 138 208 212 15.5 T3
NP60-12 12 60 229 138 208 226 17.4 T3 / L3
NP65-12 12 65 350 167 178 178 20.2 T3 / L9 / L4
NP70-12 12 70 260 169 211 215 21.7 T3 / L11
NP80-12 12 80 260 169 211 215 23.3 T3 / L11 / L4

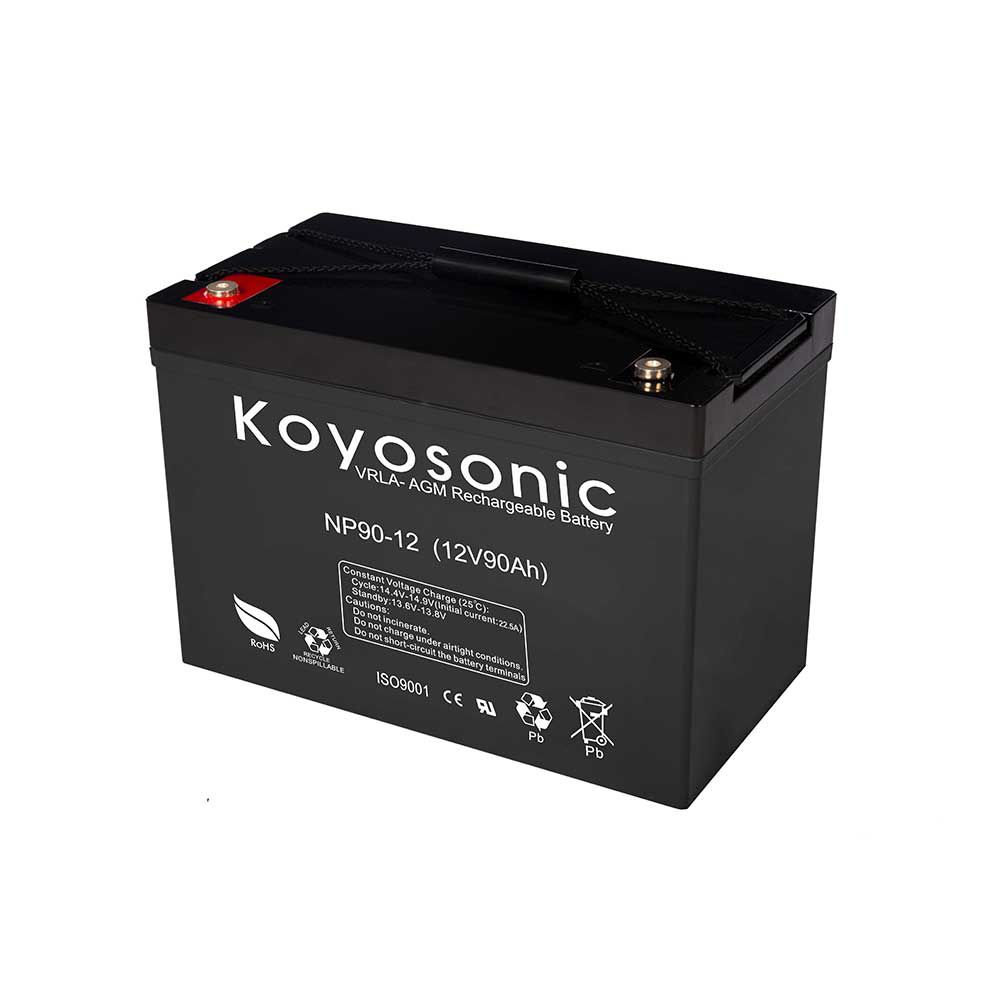

NP90-12 12 90 307 169 211 215 26.7 T3 / L13
NP90-12A 12 90 331 174 214 219 28 T4 / L12
NP100-12 12 100 331 174 214 219 28 T4 / L12
NP100-12A 12 100 407 174 210 233 29.7 T5 / L14
NP120-12 12 120 331 174 214 240 29.5 T4 / L12
NP120-12A 12 120 407 174 210 233 30 T5 / L14
NP150-12 12 150 484 171 241 241 42 T4 / L16
NP160-12 12 160 532 206 216 240 48.5 T4 /L17
NP180-12 12 180 532 206 216 221 52.5 T4 / L17
NP180-12A 12 180 500 208 212 239 55.8 L17
NP200-12 12 200 522 240 219 244 58 T5 / L17
NP220-12 12 220 522 240 219 224 60 T5 / L17
NP250-12 12 250 520 268 220 225 68 T5 / L17
MP270-12 12 270 520 268 220 225 71 T5 / L17
NP130-6 6 130 260 180 247 251 20.5 T5
NP200-6 6 200 260 180 247 251 28 T5
NP200-6A 6 200 306 168 220 225 27 T5
NP225-6 6 225 260 180 247 251 30 T5
NP225-6A 6 225 323 178 224 229 30 T5
NP50-12 2 50 160 49 166 176 3.5 T5
NP100-2 2 100 171 72 205 230 5.4 T5
NP150-2 2 150 171 102 206 230 7.3 T5
NP200-2 2 200 170 106 330 367 12 T5
NP300-2 2 300 171 151 330 365 17 T5
NP400-2 2 400 211 176 329 367 23.5 T5
NP500-2 2 500 241 172 330 367 28 T5
NP600-2 2 600 301 175 331 366 34 T5
NP800-2 2 800 410 176 330 365 47 T5
NP1000-2 2 1000 475 175 328 365 56 T5
NP1200-2 2 1200 472 172 338 355 62 T5
NP1500-2 2 1500 401 351 342 378 87.5 T5
NP2000-2 2 2000 491 351 343 383 117 T5
NP2500-2 2 2500 712 353 341 382 162 T5
NP3000-2 2 3000 712 353 341 382 171 T5
