Your position: Home > PRODUCT > Lead Batteries > Batteries for Automobile, Motorcycle and Marine > JIS Dry-Charged Automotive Batteries
Overview

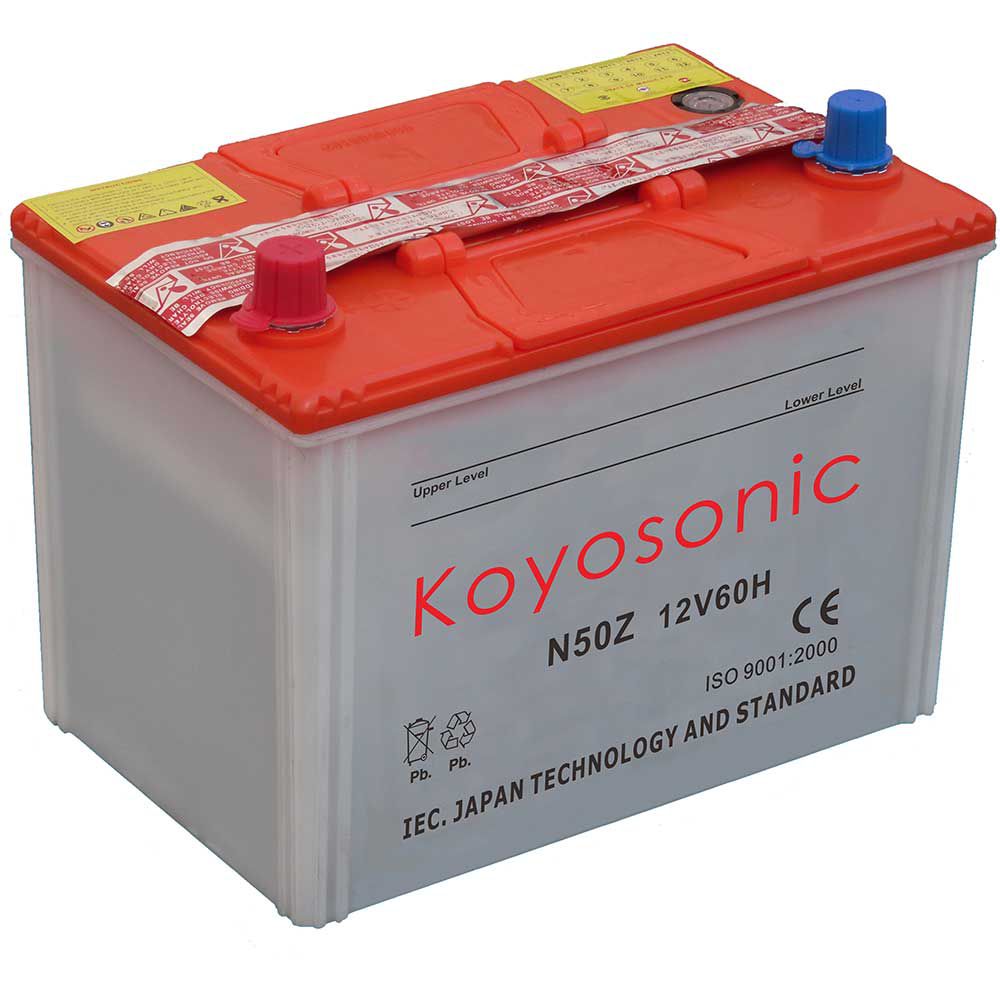

JIS Dry-Charged Automotive Batteries

JIS Dry-Charged Automotive batteries are strictly produced as per Japanese Industrial Standard. Even if they are very traditional, they have some advantages in use and storage. And so they are still welcome in some markets in the world.

Request Now
Applications
Suitable for starting, lighting and ignition in cars, trucks, ships or even individual power supply through inveters.
Characteristics
1. Dry without acid inside. 2. Can be used as power sources for vehicles and the affiliated engines. 3. The mixed metal material and special ingredients enhance the durability. 4. Special design in battery plates to get much better performance in CCA and extend service life. 5. Can be stored for more than 12 months.
General Specifications
Group No. EN Model DIN Model Capacity
 CAA Dimension (mm) Layout Terminal
Type
C20 (Ah) (EN) L W H T.H.
A19 26A19R 12N24-4 24 230 184 125 160 170 1 Flange
A19 26A19L 12N24-3 24 230 184 125 160 170 0 Flange
B20 32B20R NS40(S) 32 250 198 128 200 220 1 B
B21 32B20L NS40L(S) 32 250 198 128 200 220 0 B
B22 36B20R NS40Z(S) 36 270 198 128 200 220 1 B
B23 36B20L NS40ZL(S) 36 270 198 128 200 220 0 B
24 32C24R N40 40 280 240 132 200 220 1 A
24 32C24L N40L 40 280 240 132 200 220 0 A
24 46B24R NS60(S) 45 360 240 132 200 220 1 B( A)
24 46B24L NS60L(S) 45 360 240 132 200 220 0 B( A)
D20 50D20R 50 370 200 170 200 220 1 A
D20 50D20L 50 370 200 170 200 220 0 A
D26 48D26R N50 50 370 260 170 200 220 1 A
D26 48D26L N50L 50 370 260 170 200 220 0 A
D26 55D26R N50Z 60 440 260 170 200 220 1 A
D26 55D26L N50ZL 60 440 260 170 200 220 0 A
D26 65D26R NS70 65 460 260 170 200 220 1 A
D26 65D26L NS70L 65 460 260 170 200 220 0 A
D26 80D26R NX110-5 70 580 260 170 200 220 1 A
D26 80D26L NX110-5L 70 580 260 170 200 220 0 A
D23 55D23R 60 450 230 170 204 225 1 A
D23 55D23L 60 450 230 170 204 225 0 A
D23 65D23R 65 460 230 170 204 225 1 A
D23 65D23L 65 460 230 170 204 225 0 A
D31 65D31R N70 70 580 310 170 200 225 1 A
D32 65D31L N70L 70 580 310 170 200 225 0 A
D33 75D31R N70Z 75 590 310 170 200 225 1 A
D34 75D31L N70ZL 75 590 310 170 200 225 0 A
D35 95D31R NX120-7 80 620 310 170 200 225 1 A
D36 95D31L NX120-7L 80 620 310 170 200 225 0 A
D37 30H90R N90 90 680 310 170 200 225 1 A
D38 30H90L N90L 90 680 310 170 200 225 0 A
6TN US-6TN US-6TN 100 750 272 260 200 225 0 A
6TN US-6TL US-6TL 100 750 272 260 200 225 2 A
E41 95E41R N100 100 720 404 172 205 225 1 A / F
E41 95E41L N100L 100 720 404 172 205 225 0 A / F
E41 105E41R N100Z 105 750 404 172 205 225 1 A / F
E41 105E41L N100ZL 105 750 404 172 205 225 0 A / F
E41 115E41R NS120 110 780 404 172 205 225 1 A / F
E41 115E41L NS120L 110 780 404 172 205 225 0 A / F
F51 115F51 N120 120 810 506 180 210 230 4 A / F
F51 145F51 NS150 135 830 506 180 210 230 4 A / F
G51 145G51 N150 150 1020 506 220 210 230 4 A / F
G51 165G51 NS200 165 1150 506 220 210 230 4 A / F
G51 195G51 N180 180 1200 506 220 210 230 4 A / F
H52 210H52 N200 200 1380 506 265 215 235 4 A / F
H52 225H52 N220 220 1400 506 265 215 235 4 A / F
