Overview

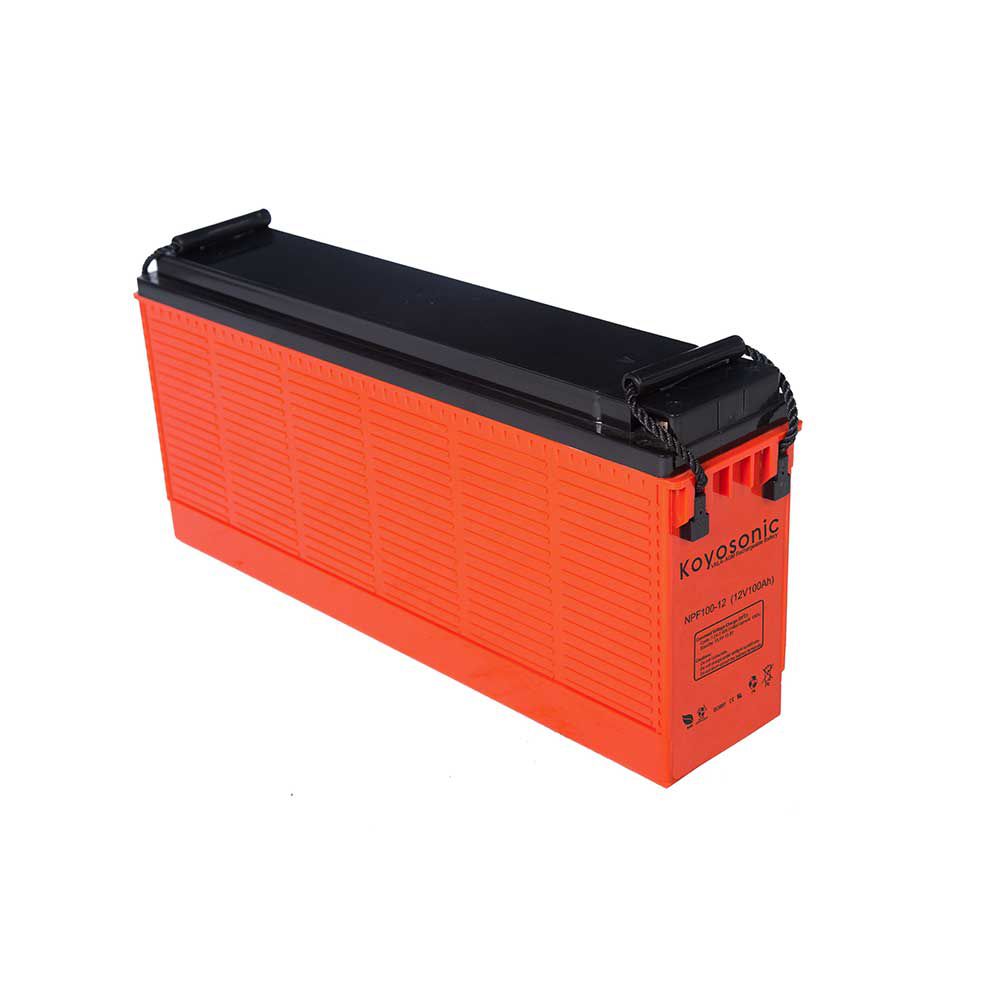

NPF Series of Front-Terminal Batteries

NPF series, also called as Euro-bat series, which is new design based on relevant requirement in INTELEC. The battery is very reasonable in structure and has occupied the leading position in the same industry. In fact, NPF series has been specially designed mainly for telecom systems. With proven compliance to the most rigorous international standards, such as IEC60896-1/22,BS6290- 4, Euro-bat Guide. Our NPF batteries are recognized as one of the best batteries for telecom applications. In order to ensure that the power supply is guaranteed at all times, essential facilities are backed up with high performances battery systems. Sudden breaks in the power supply are then no longer a problem. If the power suddenly fails, battery systems take over the emergency supply of power. The design life of our NPF batteries is 15 years.

Request Now
Applications
Communication equipment, Big Uninterruptible Power Supplies, Telecommunication systems, and Solar power system, etc.
Characteristics
Thick pasted plates with high quality lead-tin-calcium alloy grids for long service life. Prevailing design in construction. Much more energy in comparison to the battery with the same rated capacity. Front access terminals for easy and quick connection.
General Specifications
Model Volt
(V)
Capacity
(Ah )
Dimension (mm) Approx.
Weight (Kg)
Terminal
Type
L W H T.H.
NPF55-12 12 55 277 106 223 223 16.0 T2
NPF80-12 12 80 562 114 188 188 25.0 T3
NPF100-12 12 100 507 110 223 223 29.5 T5
NPF110-12 12 110 394 110 286 286 31.0 T5
NPF125-12 12 125 552 110 239 239 38.0 T5
NPF150-12 12 150 551 110 288 288 44.0 T5
NPF160-12 12 160 551 110 288 288 45.0 T5
NPF160-12A 12 160 560 125 280 280 46.0 T5
NPF175-12 12 175 546 125 316 323.5 53.5 T5
NPF180-12 12 180 560 125 316 316 54.5 T5
NPF200-12 12 200 560 125 316 316 57.0 T5
