Overview

NPS Series of Solar-Power Batteries

Based on 18-year experience in research and development, we succeeded in developing NPS batteries mainly suitable for Solar / Wind power or Photovoltaic system and then we called it as PV batteries too. In fact, use of AGM batteries in deep cyclic applications is short sighted because the AGM batteries will fail prematurely indeed the AGM battery capacity will start to reduce from the day of installation. With the great help of Doctor Yoshida Masayoshi in Toyama University in Japan, we combine gel technologies with deep cycle technologies by putting some special elements in lead alloy and some additive in electrolyte to get much more longer cycle life for NPS batteries.

Request Now
Applications
Photovoltaic / Solar / Wind power system. Alternative Energy Storage. Boats/Marine/Navigational Aids, etc.
Characteristics
Unique plate group configuration. More tin in plates to get much better in fast recharge after deep discharge .Put silver in plates to get longer life. Reliable operation at extreme temperatures (-40C to +60C). Y & M Gel technology from Toyama University in Japan. Comply with the standards: JISC8704, BS6290 Part 4 IEC6 I 427 & IEC60896, IEC60896-2 I /22.
General Specifications
Model Volt
(V)
Capacity
(Ah )
Dimension (mm) Approx.
Weight (Kg)
Terminal
Type
L W H T.H.
MPS9-12 12 9 151 65 94 100 2.4 F1 / F2
NPS12-12 12 12 152 99 96 102 3.4 F1 / F2
NPS18-12 12 18 181 77 167 167 5.4 L1/T1
NPS20-12 12 20 181 77 167 167 6.1 L1/T1
NPS26-12 12 26 166 175 126 126 8.5 T3
NPS33-12 12 33 196 130 155 167 10.5 T3
NPS38-12 12 42 198 166 174 174 13.0 T3
NPS55-12 12 55 229 138 208 212 17.5 T3
NPS65-12 12 65 350 167 178 178 20.5 T3
NPS70-12 12 70 260 169 211 215 23.5 T3
NPS80-12 12 90 331 174 214 219 28.0 T3

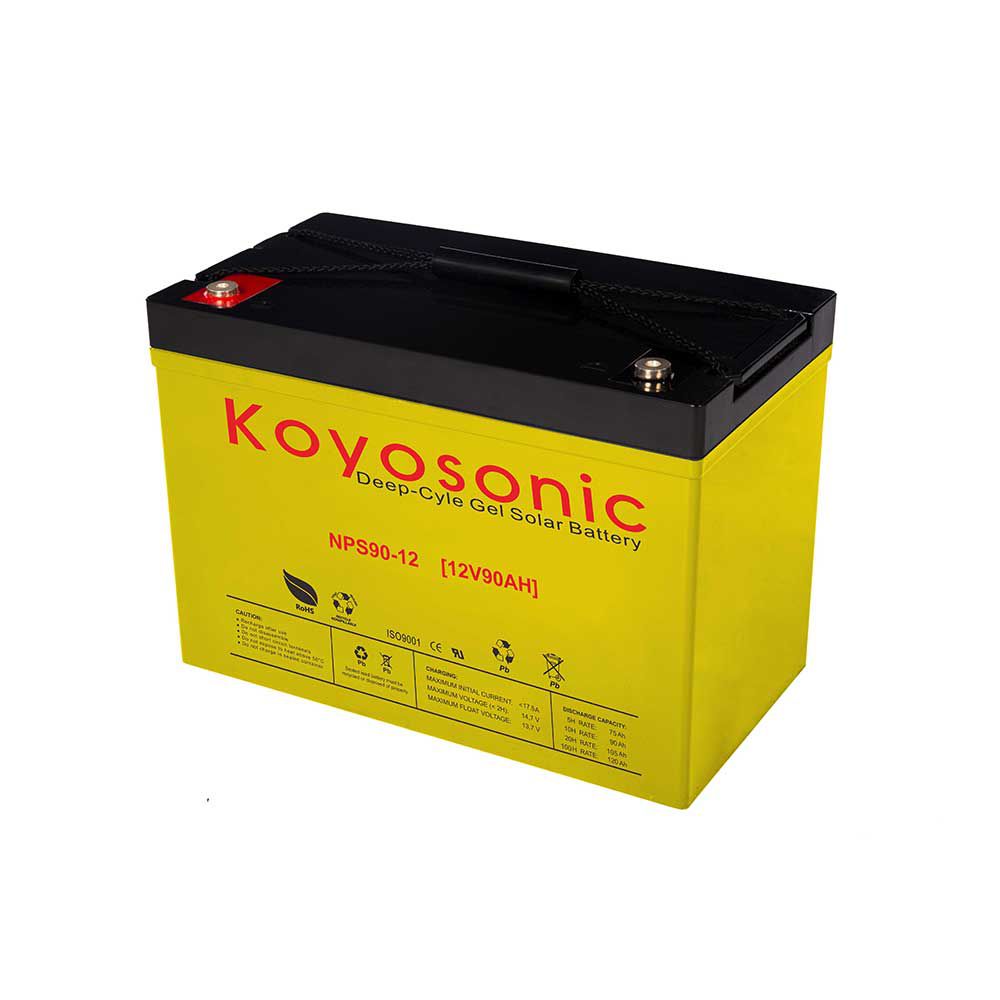

NPS90-12 12 90 307 169 211 215 27.0 T3
NPS100-12 12 100 331 174 214 219 29.5 T4
NPS120-12 12 120 331 174 214 219 33.0 T4
NPS130-12 12 130 407 174 210 233 34.5 T5
NPS150-12 12 150 484 171 241 241 44.0 T4
NPS180-12 12 200 522 240 219 224 59.0 T5
NPS200-12 12 220 522 240 219 224 61.0 T5
NPS250-12 12 250 520 268 220 225 70.5 T5
NPS130-6 6 130 260 180 247 251 20.8 T5
NPS200-6 6 180 260 180 247 251 28.2 T5
NPS200-6 6 180 306 168 220 225 27.6 T5
NPS225-6 6 200 260 180 247 251 30.3 T5
NPS220-6 6 200 323 178 224 229 29.8 T5
