Overview

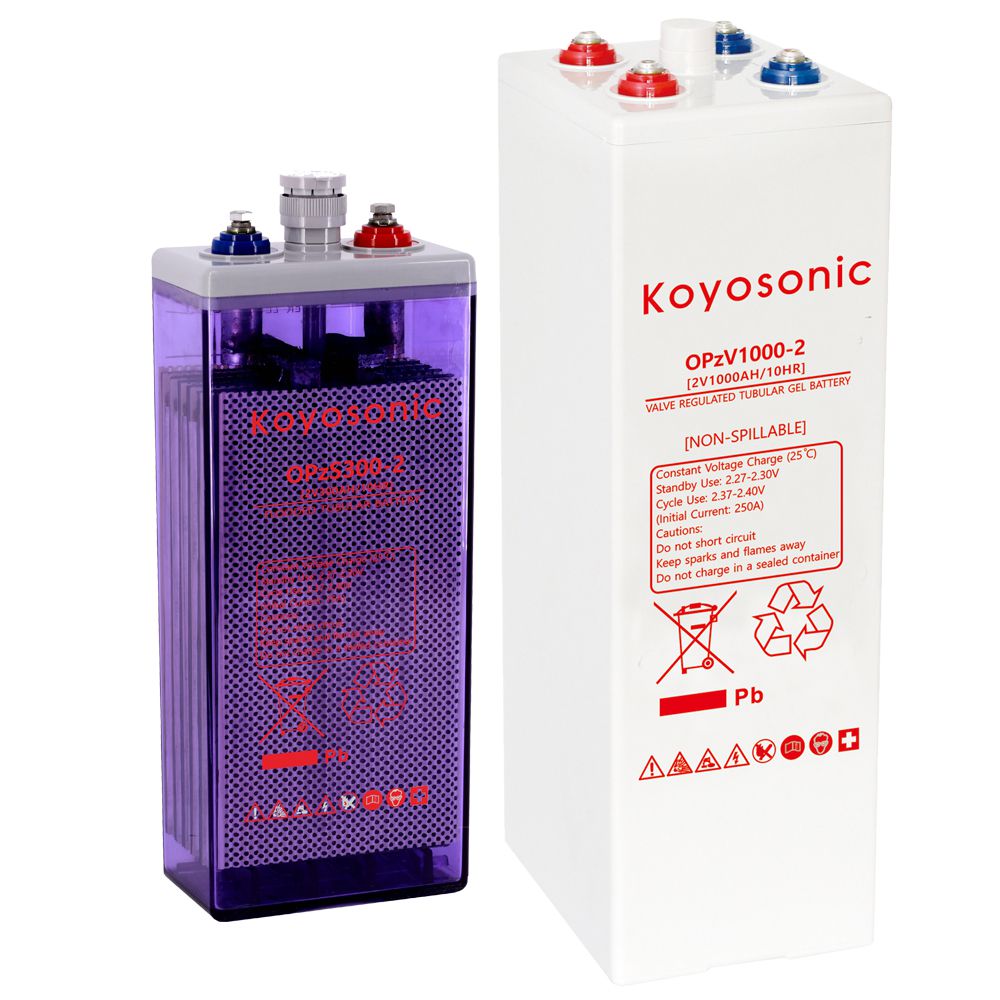

OPzV& OPzS Series of Tubular Batteries

OPzV seies of batteries are pure grl batteries, specialy designed by using tubular positive plates with fumed gelled eletrolyte, The battery performance met and exceed the standards sepcified in DIN 40741. It has a very long life and very high deep-cycle capability. The design life of  OPzV ibatteries is 20 years.

OPzS series of batteries have tubular posiitive plates, however, they are not gel as they are flooded with free eletrolyte. They need maintenace by filling eletrolyte during service. The design life of OPzS ibatteries is also 20 years.


Request Now
Applications
Solar / Wind power station. Battery Energy Storage System (BESS). Telecommunicaiton power system, etc.
Characteristics
Special design in plates: tubular shape for positive plates and flat shape for negative plates.Adopt PVC-SiO2 Separator with very high porosity and low resistance. Comply with the standards: DIN40742, IEC61427 & IEC60896, IEC60896-21/22, YDT1360-2005. Gel electrolyte contains fumed silica in dilute solid state when being injected. No thermal runaway even if used in hard conditionsuch as high-temperature or under overcharge. Reliable operation at extreme temperatures (-40C to +60C).
General Specifications
OPzV series of Tubular Gel Batteries
Model Volt
(V)		 Capacity
(Ah )		 Dimension (mm) Approx.
Weight (Kg)		 Terminal
Type
L W H T.H.
OPzV200-6 6 200 322 178 225 230 28.5 M8
OPzV60-12 12 60 260 170 211 216 23 M6
OPzV80-12 12 80 328 172 215 220 30 M8
OPzV100-12 12 100 407 178 225 225 34.5 M8
OPzV120-12 12 120 484 170 240 240 45 M8
OPzV150-12 12 150 532 207 214 219 53 M8
OPzV180-12 12 180 522 240 220 225 65 M8
OPzV200-12 12 200 522 268 220 225 70 M8
OPzV200-2 2 200 206 103 355 390 17 M10
OPzV250-2 2 250 206 124 355 390 21 M10
OPzV300-2 2 300 206 145 355 390 26 M10
OPzV350-2 2 350 206 124 471 506 29 M10
OPzV420-2 2 420 206 145 471 506 33 M10
OPzV500-2 2 500 206 166 471 506 39 M10
OPzV600-2 2 600 206 145 646 681 47 M10
OPzV750-2 2 750 254 210 471 506 56 M10
OPzV800-2 2 800 210 191 646 681 63 M10
OPzV1000-2 2 1000 233 210 646 681 77 M10
OPzV1200-2 2 1200 275 210 646 681 92 M10
OPzV1500-2 2 1500 275 210 796 831 110 M10
OPzV2000-2 2 2000 399 212 772 807 150 M10
OPzV2500-2 2 2500 487 212 772 807 190 M10
OPzV3000-2 2 3000 576 212 772 807 225 M10
OPzS series of Tubular Vented Batteries
Model Volt
(V)		 Capacity
(Ah )		 Dimension (mm) Approx.
Weight (Kg)		 Terminal
Type
L W H T.H.
OPzS200-2 2 200 206 103 355 390 13/18 M10
OPzS250-2 2 250 206 124 355 390 16/21.5 M10
OPzS300-2 2 300 206 145 355 390 18/25 M10
OPzS350-2 2 350 206 124 471 506 22/29 M10
OPzS420-2 2 420 206 145 471 506 25/34 M10
OPzS500-2 2 500 206 166 471 506 29/39 M10
OPzS600-2 2 600 206 145 646 681 35/47 M10
OPzS750-2 2 750 254 210 471 506 46/60 M10
OPzS800-2 2 800 210 191 646 681 48/65 M10
OPzS1000-2 2 1000 233 210 646 681 59/78 M10
OPzS1200-2 2 1200 275 210 646 681 68/92 M10
OPzS1500-2 2 1500 275 210 796 831 84/114 M10
OPzS2000-2 2 2000 399 212 772 807 113/54 M10
OPzS2500-2 2 2500 487 212 772 807 141/191 M10
OPzS3000-2 2 3000 576 212 772 807 167/227 M10
