NPL Series of Long-Life Batteries

To meet the extremely fast growth and development in telecommunication networks and internet, there is high requirement for the lifespan of VRLA batteries in standby application. So we have designed and produced NPL series of batteries with 15-18 years in design life.

Request Now
Applications
Telephone exchange, various communication systems. Big UPS (Uninterruptible Power Supply). Electricity-generation stations and  CATV backup applications, etc.
Characteristics
Thicker Plates and High-density Active Material with special additives. Super long Life (18-year design life) in standby applications.  C&F (Container Formation) Technology.
General Specifications
Model Volt
(V)		 Capacity
(Ah )		 Dimension (mm) Approx.
Weight (Kg)		 Terminal
Type
L W H T.H.
NPL200-6 6 200 306 168 220 225 30.5 T5
NPL220-6 6 220 260 180 247 252 30.0 T5
NPL225-6 6 225 306 168 220 225 32.0 T5
NPL230-6 6 230 243 187 275 275 31.5 T5
NPL330-6 6 330 295 178 354 360 46.0 T5
NPL340-6 6 340 295 178 354 360 47.0 T5
NPL400-6 6 400 295 178 404 410 55.3 T5
NPL450-6 6 450 295 178 404 410 57.0 T5
NPL200-8 8 200 260 182 295 301 40.0 T5
MPL7-12 12 7 151 65 94 100 2.25 F1/F2
NPL8-12 12 8 151 65 94 100 2.4 F1/F2
NPL12-12 12 12 152 99 96 102 3.8 F1/F2
NPL20-12 12 20 181 77 167 167 6.1 L1/T1
NPL24-12 12 26 165 126 174 179 8.5 T3
NPL35-12 12 35 196 130 155 167 10.5 T2
NPL38-12 12 38 198 166 174 174 13.8 T3
NPL50-12 12 50 229 138 208 212 16.8 T3
NPL65-12 12 65 350 167 178 178 21.0 T3
NPL70-12 12 70 260 169 211 215 26.5 T3
NPL80-12 12 80 307 169 211 216 28.0 T3

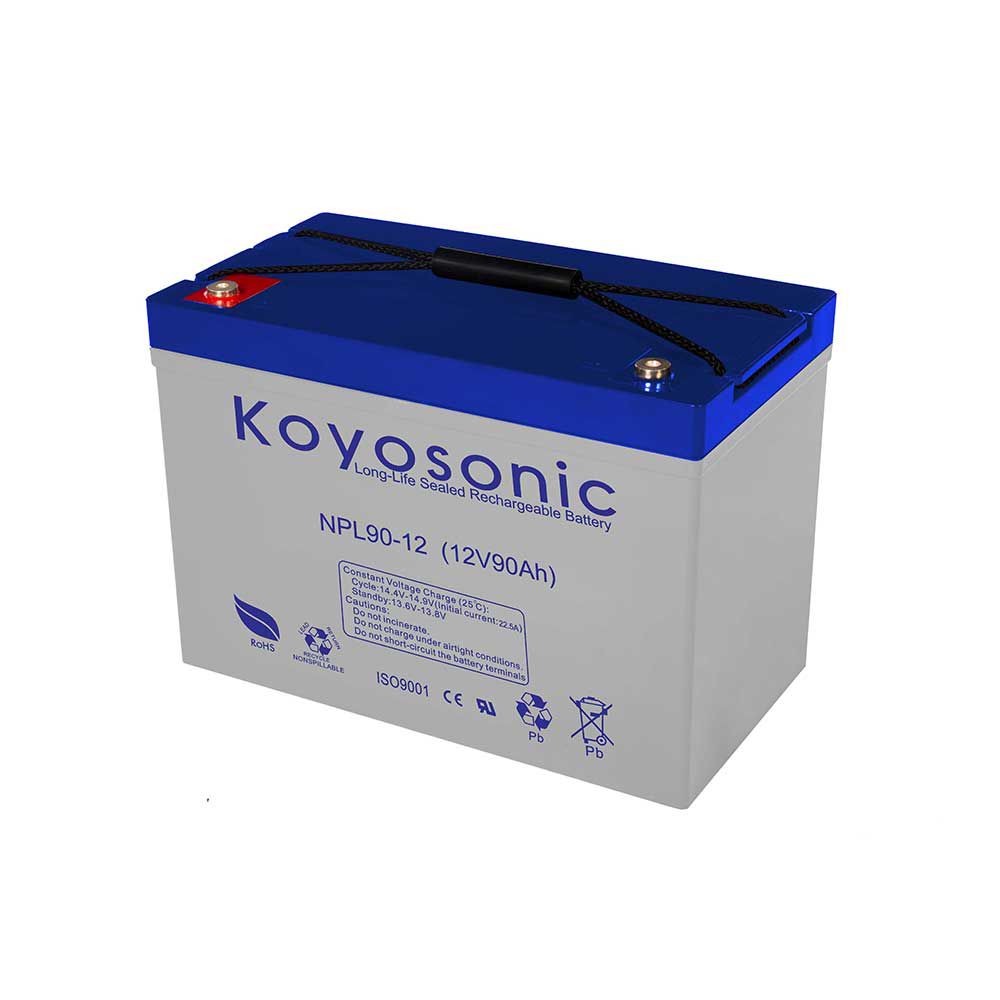

NPL90-12 12 90 331 176 214 220 30.0 T4
NPL100-12 12 100 331 176 214 220 33.0 T4
NPL120-12 12 120 407 173 210 233 34.0 T5
NPL135-12 12 135 341 173 283 288 41.0 T5
NPL150-12 12 150 484 171 241 241 44.0 T4
NPL180-12 12 180 532 206 216 222 56.0 T4
NPL200-12 12 200 532 206 216 222 59.0 T5
NPL220-12 12 220 522 240 219 225 61.0 T5
NPL250-12 12 250 520 269 203 209 71.0 T5
NPL260-12 12 260 520 268 220 226 73.0 T5
NPL50-12 2 50 160 49 166 176 4.5 T5
NPL100-2 2 100 171 72 205 230 6.2 T5
NPL150-2 2 150 171 102 206 230 8.0 T5
NPL200-2 2 200 170 106 330 367 13.0 T5
NPL300-2 2 300 171 151 330 365 19.0 T5
NPL400-2 2 400 211 176 329 367 26.0 T5
NPL500-2 2 500 241 172 330 367 31.0 T5
NPL600-2 2 600 301 175 331 366 38.0 T5
NPL800-2 2 800 410 176 330 365 53.0 T5
NPL1000-2 2 1000 475 175 328 365 62.0 T5
NPL1200-2 2 1200 472 172 338 355 65.0 T5
NPL1500-2 2 1500 401 351 342 378 100.0 T5
NPL2000-2 2 2000 491 351 343 383 130.0 T5
NPL2500-2 2 2500 712 353 341 382 162.0 T5
NPL3000-2 2 3000 712 353 341 382 199.0 T5
