JIS Maintenance-Free Automotive Batteries

JIS Maintenance-fee automotive batteries are sealed maintenance-free batteries, designed to start some vechicles such as cars, trucks, buses and ships. The are produced as per Japanese Industrial Standard.

Request Now
Applications
Starting, lighting and ignition for cars, trucks, buses and ships, etc. The batteries can be also used in inverter power system to store power for emergency.
Characteristics
1. High Performance Computer -Designed Plate Grid enhances current flow pattern for improved internal conductivity while unique grid alloy construction provides optimum cyclabu5dfety. 2. Advanced PE enveloped separators are incorporated to eliminate internal short circuits, reduce water loss, lower grid corrosion and boost Cold Cranking Amperage levels by a massive 10% for instant start-ups. 3. Quality sulphuric acid & pure distilled water are utilised for filling to produce the purest form of battery electrolyte. 4. Solid Inter-Cell, Through-The-Partition connectors deliver far less internal resistance for more usable power during critical operating conditions. 5. Performance-oriented venting system provides superiorcorrosion protection through effective fume dissipation while the high strength polypropylene casing endures knocks, impact and vibration resulting in longer component life.
General Specifications
Group No. EN Model DIN Model Capacity
CAA Dimension (mm) Layout Terminal
Type
C20 (Ah) (EN) L W H T.H.
B20 38B20R-MF NS40Z-MF 36 280 197 129 200 220 1 B
B20 38B20L-MF NS40ZL-MF 36 280 197 129 200 220 0 B
B24 46B24R-MF NS60(S)-MF 45 360 240 130 200 220 1 B (A)
B24 46B24L-MF NS60L(S)-MF 45 360 240 130 200 220 0 B (A)
B24 55B24R-MF NX100-6MF 50 400 240 130 200 220 1 A
B24 55B24L-MF NX100-6LMF 50 400 240 130 200 220 0 A
D26 48D26R-MF N50-MF 50 420 260 173 204 220 1 A
D26 48D26L-MF N50L-MF 50 420 260 173 204 220 0 A
D26 55D26R-MF N50Z-MF 60 450 260 173 204 220 1 A

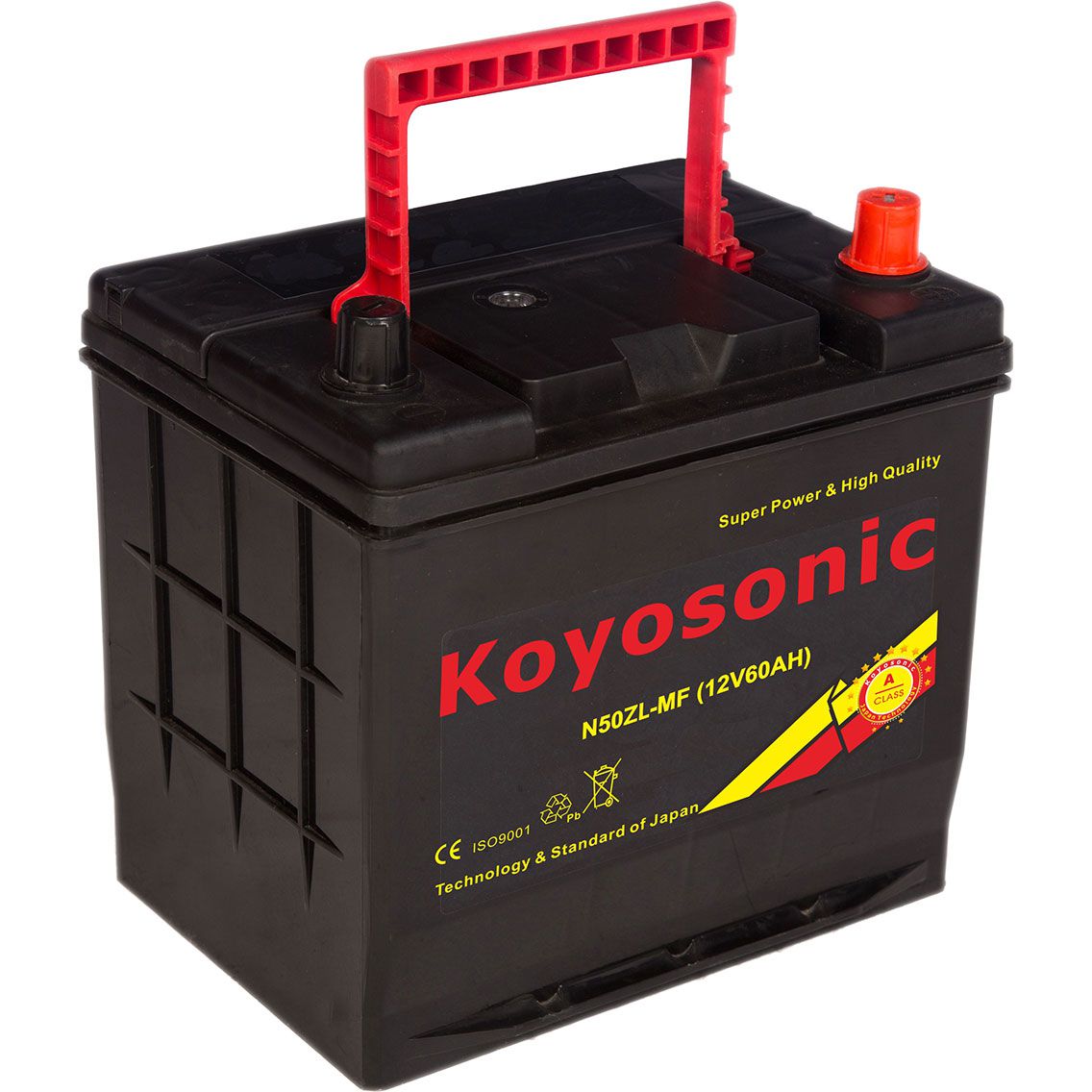

D26 55D26L-MF N50ZL-MF 60 450 260 173 204 220 0 A
D26 65D26R-MF 65 550 260 173 204 220 1 A
D26 65D26L-MF 65 550 260 173 204 220 0 A
D26 75D26R-MF NS70-MF 65 550 260 173 204 220 1 A
D26 75D26L-MF NS70L-MF 65 550 260 173 204 220 0 A
D26 80D26R-MF NX110-5-MF 70 630 260 173 204 220 1 A
D26 80D26L-MF NX110-5L-MF 70 630 260 173 204 220 0 A
D23 55D23R-MF 60 450 230 170 200 220 1 A
D23 55D23L-MF 60 450 230 170 200 220 0 A
D23 65D23R-MF 65 550 230 170 200 220 1 A
D23 65D23L-MF 65 550 230 170 200 220 0 A
D23 70D23R-MF 70 630 230 170 200 220 1 A
D23 70D23L-MF 70 630 230 170 200 220 0 A
D31 65D31R-MF N70-MF 70 630 306 173 204 220 1 A
D31 65D31L-MF N70L-MF 70 630 306 173 204 220 0 A
D31 75D31R-MF N70Z-MF 75 650 306 173 204 220 1 A
D31 75D31L-MF N70ZL-MF 75 650 306 173 204 220 0 A
D31 95D31R-MF NX120-7-MF 80 700 306 173 204 220 1 A
D31 95D31L-MF NX120-7L-MF 80 700 306 173 204 220 0 A
D31 30H90R-MF 90 730 306 173 204 220 1 A
D31 30H90L-MF 90 730 306 173 204 220 0 A
6TN US-6TN US-6TN-MF 100 760 272 260 200 225 0 A
6TN US-6TL US-6TL-MF 100 760 272 260 200 225 2 A
E41 95E41R-MF N100-MF 100 750 402 172 200 220 1 A
E41 95E41L-MF N100L-MF 100 750 402 172 200 220 0 A
E41 105E41R-MF NS120-MF 110 800 402 172 200 220 1 A
E41 105E41L-MF NS120L-MF 110 800 402 172 200 220 0 A
E41 130E41R-MF NX200-10MF 115 810 402 172 200 220 1 A
E41 130E41L-MF NX200-10LMF 115 810 402 172 200 220 0 A
F51 115F51-MF N120-MF 120 850 504 180 210 230 4 A
F51 145F51-MF NS150-MF 135 940 504 180 210 230 4 A
51 145G51-MF N150-MF 150 1010 507 220 212 230 4 A
52 165G51-MF NS200-MF 165 1030 507 220 212 230 4 A
53 195G51-MF N180-MF 180 1050 507 220 212 230 4 A
H52 190H52-MF N200-MF 200 1100 514 265 210 235 4 A
H52 225H52-MF N220-MF 220 1130 514 265 210 235 4 A
